The Madimack InverCHLOR revolutionises pool chlorination with exceptional performance in both salt and mineral pools. With adjustable settings and real-time updates on water chemistry, it maintains optimal conditions through every season. Compatible with ultra-low salt or mineral levels from 1200–6000 ppm, InverCHLOR efficiently produces chlorine to keep your pool perfectly sanitised — with minimal effort from you. Select your output size above to match your pool volume.

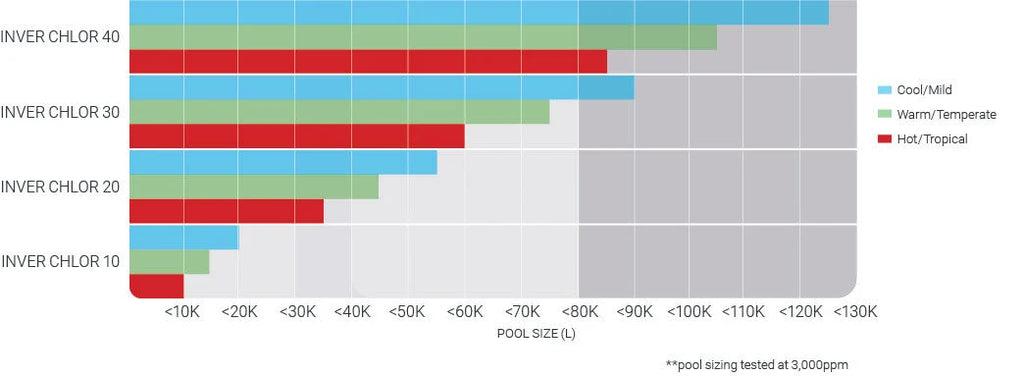

Which Size Do I Need?
| Model |
Output |
Cool / Mild Climate |
Warm / Temperate |
Hot / Tropical |
InverChlor 10g
MM-IC10
|
10g/hr |
Up to ~20,000L |
Up to ~15,000L |
Up to ~10,000L |
InverChlor 20g
MM-IC20
|
20g/hr |
Up to ~55,000L |
Up to ~50,000L |
Up to ~35,000L |
InverChlor 30g
MM-IC30
|
30g/hr |
Up to ~85,000L |
Up to ~75,000L |
Up to ~60,000L |
InverChlor 40g
MM-IC40
|
40g/hr |
Up to ~125,000L |
Up to ~105,000L |
Up to ~85,000L |
*Pool sizing per Madimack, tested at 3,000ppm salt, calculated at 25°C water temperature, based on 10,000 operating hours on the cell. Most NZ pools fall under the Cool/Mild column. When in doubt, size up.
Key Features
⏱️
10,000+ Hour Cell Life
High-performance cell with intelligent control that minimises strain and maximises longevity.
📱
WiFi Connectivity
Monitor water chemistry and adjust settings remotely via the app — convenience at your fingertips.
🧠
Smart Alerts & Notifications
Hands-off pool ownership — get notified when your pool needs salt or minerals, no guesswork needed.
🔬
Auto pH Dosing (Optional)
Pair with the InverChlor pH Doser for continuous pH monitoring and automated acid dosing.
✨
Self-Cleaning Cell
Auto reverse polarity prevents scale buildup for consistent chlorine production with minimal maintenance.
🖥️

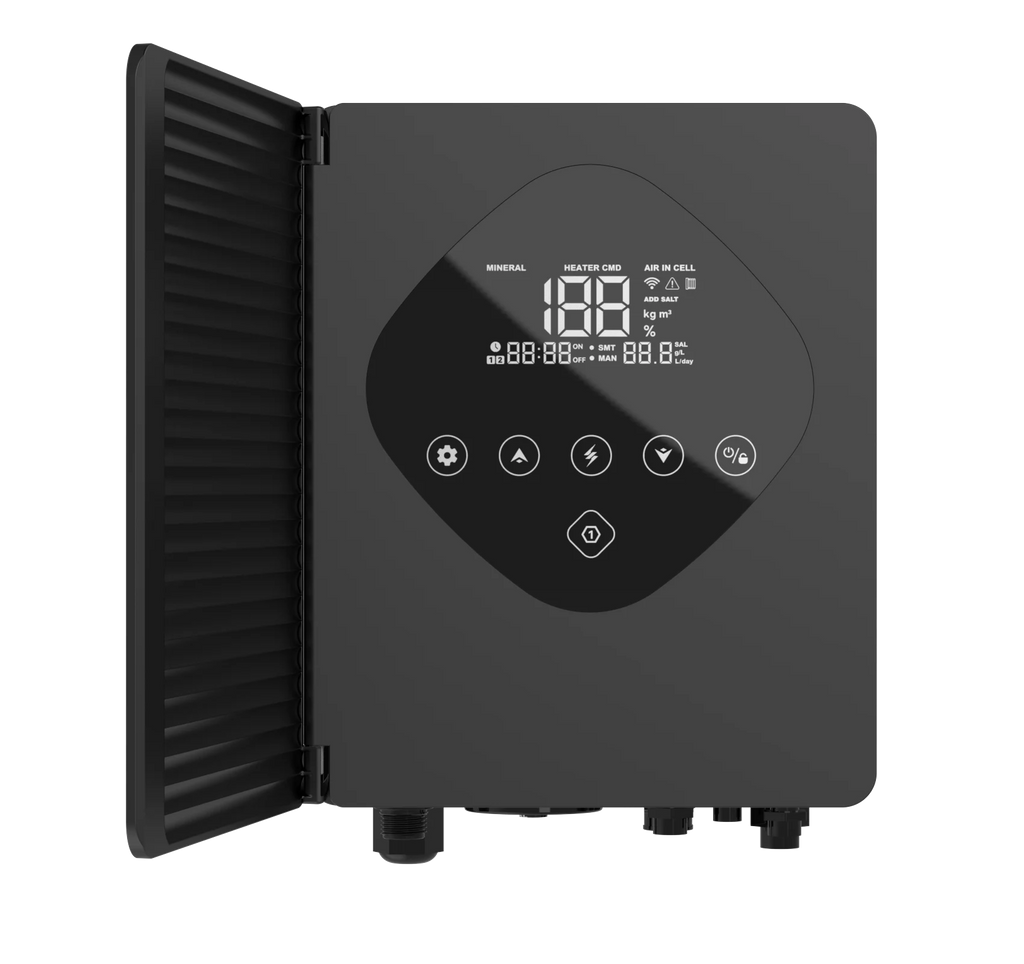

UV-Protected Touchscreen LCD
Full LCD touch screen stays clear and responsive even after prolonged outdoor sun exposure.
🔧

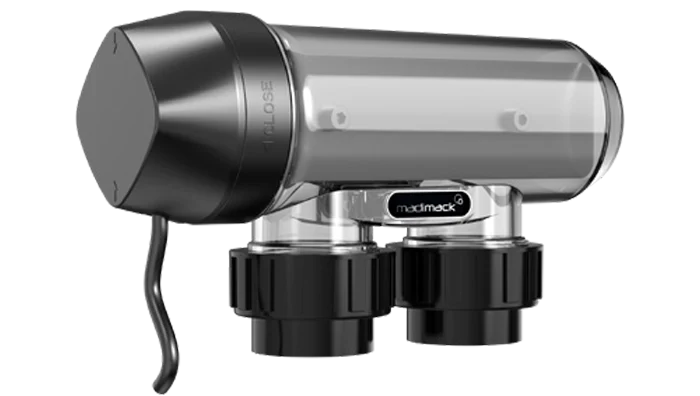

Modular Cell Design
Quick installation and easy maintenance — electrode, acid injector, sensor holder and flow switch included.
⚡
InverMAC Inverter Technology
Adaptive power control optimises energy use and manages your pool efficiently all year round.
🧪
Complete The System
Add the InverChlor pH Doser
Fully automated pH control with precise acid dosing — designed to integrate seamlessly with every InverChlor chlorinator. Set it, forget it, swim.
View pH Doser →
Specifications (All Sizes)
Chlorinator
Output Options10 / 20 / 30 / 40 g/hr @ 3000ppm
Salt / Mineral Range1200 – 6000 ppm
Water Connections40mm & 50mm
Water Treatment TypeSalt & Mineral
Powerpack Dimensions
Length245mm
Width200mm
Depth80mm
Cell Dimensions
Length327mm
Width117mm
Height150mm
Warranty
Control Unit4 Years
Cell4 Years / 10,000hrs
Compatibility
Replaces AstralE, VX, V, eQ, Halo
Industry-Leading Warranty
🛡️
4
Year Warranty
Control Unit
⚗️
4
Year / 10,000hrs
Cell (whichever comes first)
🔩
100%
Replacement Warranty
All Parts Covered
Downloads
