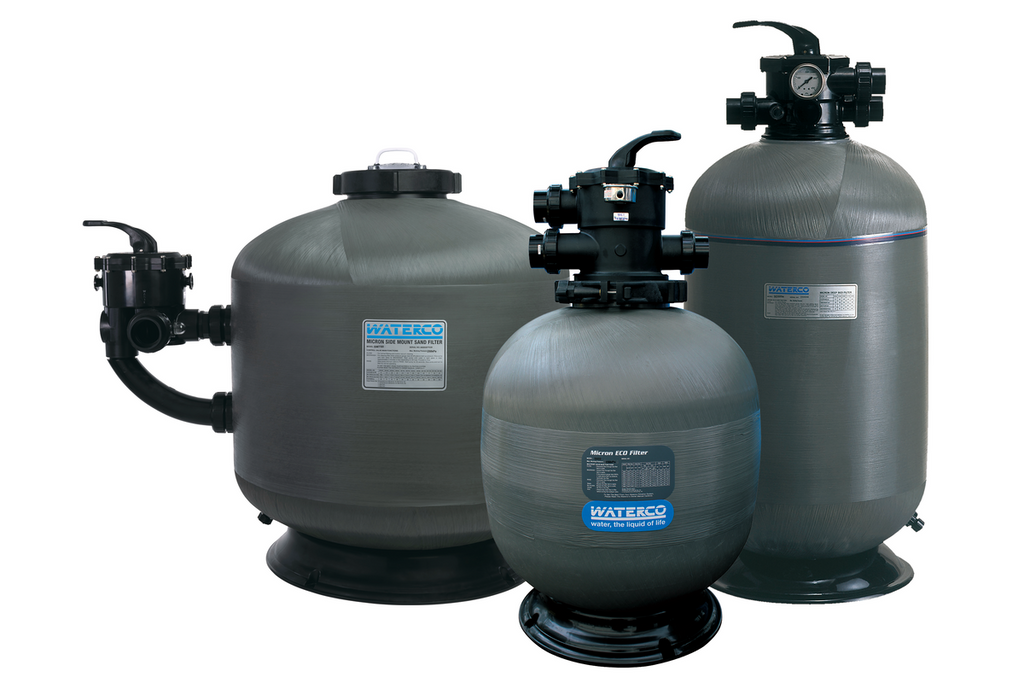

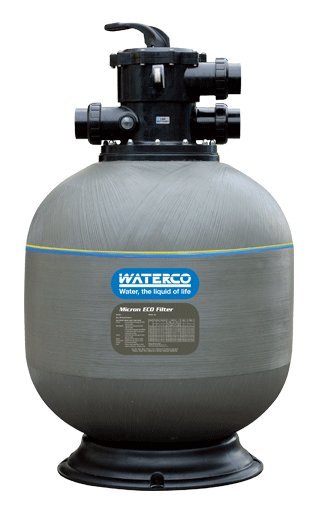

Micron ECO top mount filters

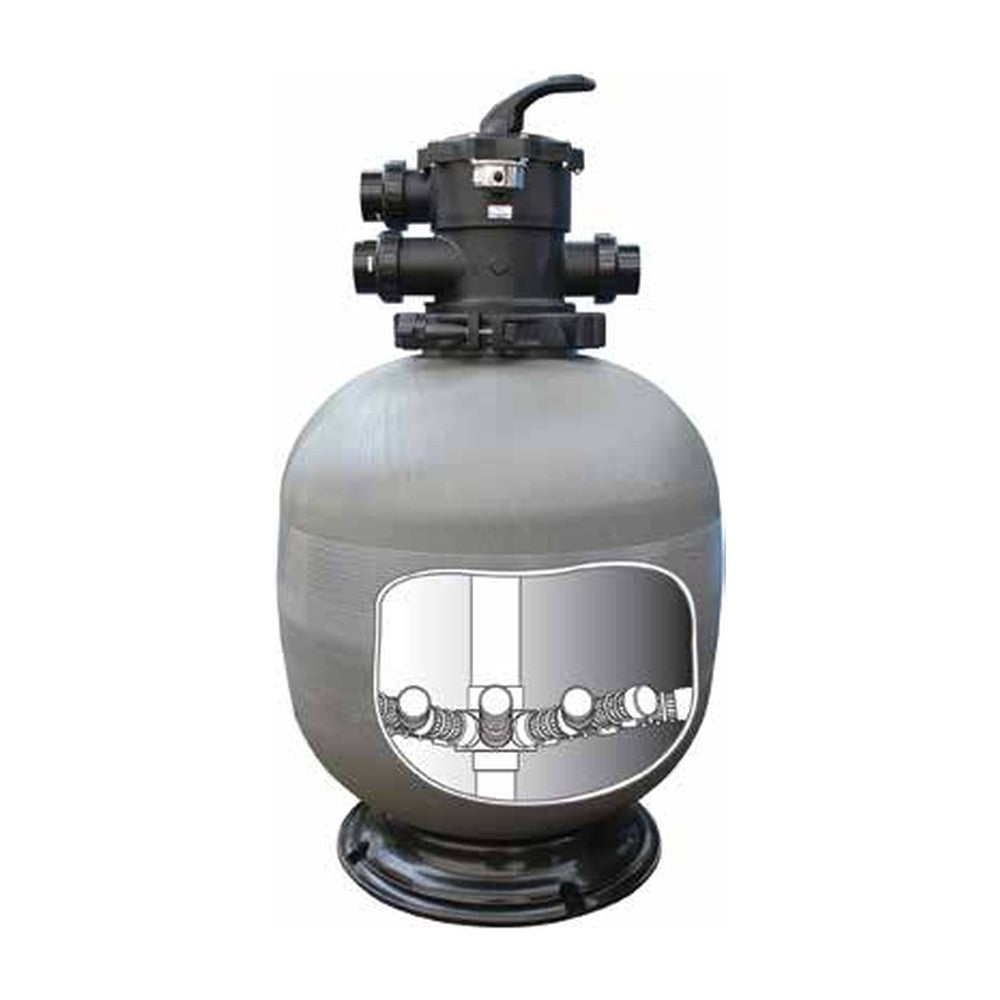

A filament wound fibreglass media filter. The vessel is wound from continuous fibreglass strands into one seamless piece, with no welds, seams or tank linings to corrode.

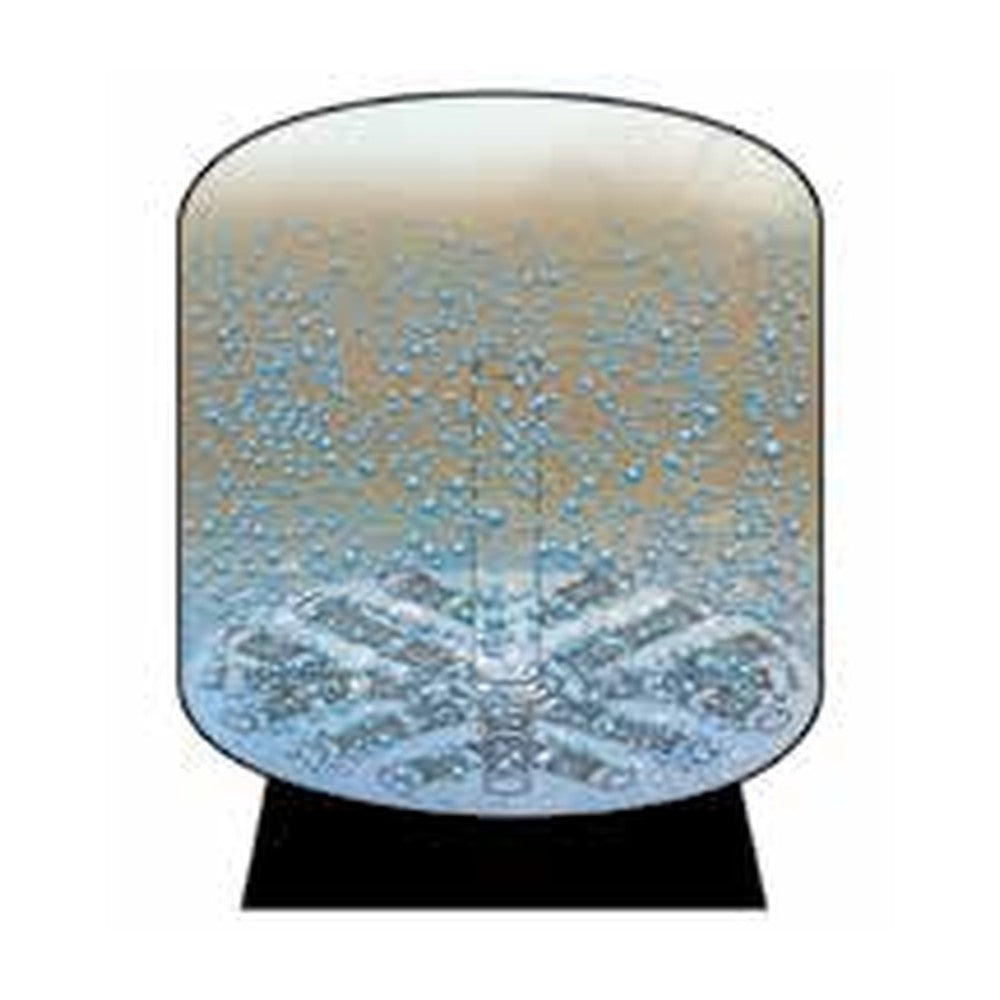

- Fish Tail laterals: Waterco rates the backwash water saving at 30%
- Backwash flow rate half that of a conventional media filter, so low powered, energy efficient pumps can be used

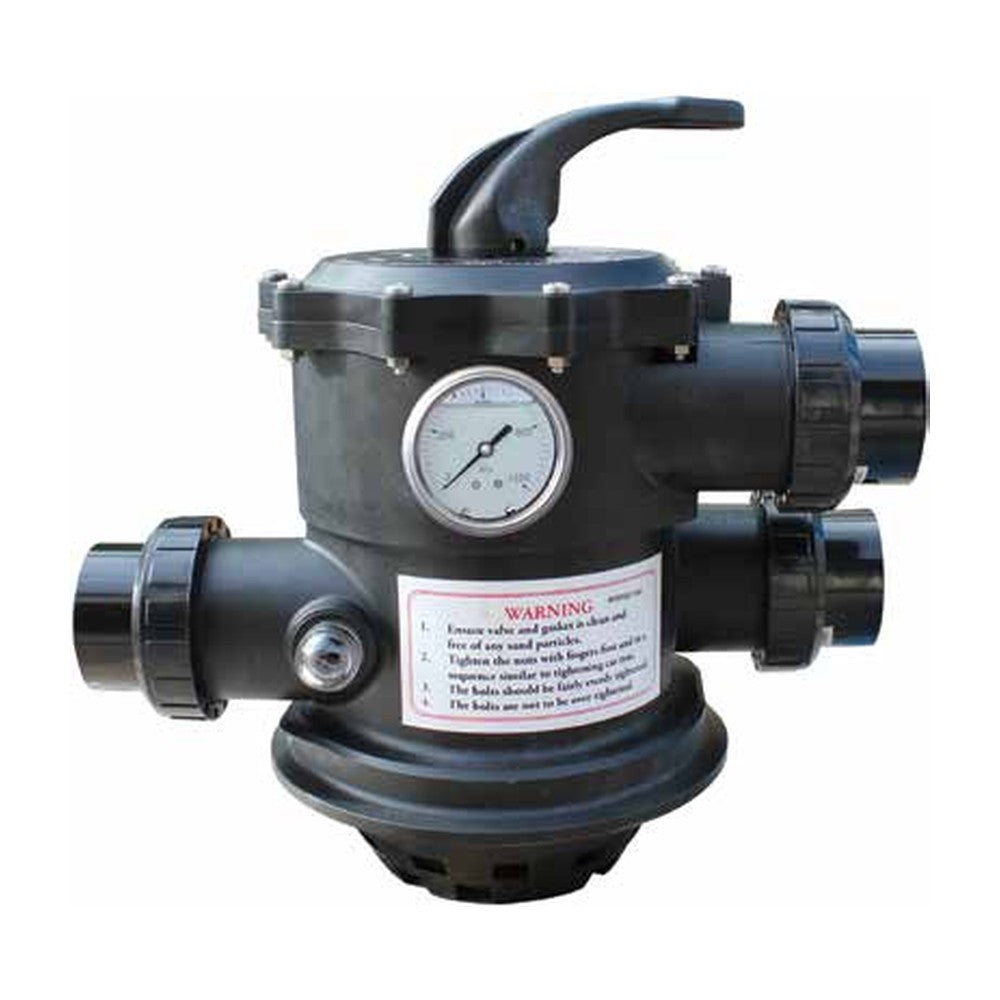

- Six position multiport valve with sight glass, pressure gauge and quick connect half unions
- Inflow diffuser spreads water evenly across the filter bed
- S600 and S602 have a clamp band for installation in any direction
- Corrosion and UV resistant tank on a large, stable base
Choose your size
| Model |
Nominal |
Valve |
Max pool size |
Max flow |
Filter area |
| S500 |
22" |
40mm |
57,000 L |
157 lpm |
0.20 m² |
| S600 |
24" |
40mm |
81,000 L |
226 lpm |
0.28 m² |
| S602 |
24" |
50mm |
81,000 L |
226 lpm |
0.28 m² |
| S702 |
28" |
50mm |
111,000 L |
308 lpm |
0.38 m² |
| S800 |
32" |
50mm |
145,000 L |
402 lpm |
0.50 m² |
| S900 |
36" |
50mm |
183,000 L |
509 lpm |
0.64 m² |
Max pool size is based on a 6 hour turnover. Working pressure 250 kPa, or 350 kPa on the S600 and S602. Maximum water temperature 50°C.
Technical specification
| Model |
Inner diameter |
Backwash flow |
Glass Pearl media |
Sand 16/30 |
Zeoplus 1 to 2.2 |
| S500 |
500mm |
164 lpm |
105 kg |
95 kg |
78 kg |
| S600 |
600mm |
189 lpm |
171 kg |
155 kg |
127 kg |
| S602 |
600mm |
189 lpm |
171 kg |
155 kg |
127 kg |
| S702 |
700mm |
257 lpm |
249 kg |
225 kg |
185 kg |
| S800 |
800mm |
335 lpm |
376 kg |
340 kg |
279 kg |
| S900 |
900mm |
424 lpm |
520 kg |
470 kg |
386 kg |
Filter media is not included. Quantities above are for one fill of each media type. Choose one and order it separately.
Dimensions
| Model |
Overall height |
Vessel width |
Base width |
| S500 |
864mm |
505mm |
443mm |
| S600 |
968mm |
622mm |
540mm |
| S602 |
1085mm |
622mm |
540mm |
| S702 |
1072mm |
723mm |
620mm |
| S800 |
1157mm |
810mm |
620mm |
| S900 |
1234mm |
910mm |
620mm |
Warranty
| Installation |
Item |
Cover |
| Domestic |
Filter tank |
10 years (conditional) |
| Domestic |
Multiport valve and other components |
1 year |
| Domestic |
Labour |
1 year |
| Commercial |
Filter tank |
5 years (1 year full plus 4 years pro rata) |
| Commercial |
Multiport valve and other components |
1 year |
Warranty is provided by Waterco and is subject to Waterco's warranty terms and conditions.
Documents
Waterco requires this filter to be installed and serviced by a qualified technician.
Not sure which size suits your pool? Call or email us.
